Transfer model
The transfer objects act as a front-facing interface masking the underlying entity model. The transfer object model can hide the complexity and the details of the entity model and provides a simpler interface to the clients of the application. Or it can provide different views for different purposes, allowing changes in functionality without changing the underlying, often rigid data model, which is often created from very different aspects. In addition, the transfer object model also reduces the dependence between the entity model and the outside world.
The main building blocks of the transfer object model are transfer objects and actors. The following chapters describe these building blocks in detail.
Transfer object
A transfer object is a container for a set of data fields that is transferred between the entity layer and any upper layers (e.g. user interface or external system). The transfer objects discussed in this sub-chapter are often referred to as "unmapped" transfer objects. This term is used because there are also "mapped" transfer objects, which will be discussed later.
|
The term "transfer object" is a short version of "transfer object type". The correct term would be "transfer object type". However, to distinguish between the type and the instance, the object is called "instance of a transfer object" or "transfer object instance". |
Transfer objects are simple non-persistent objects that carry data between our application and the outside world. The data members of a transfer object can be set and read at any stage of its life cycle.
To define an unmapped transfer object, use the transfer keyword.
Syntax:
transfer <name> {
[member] ...
}
where the <name> is the name of the transfer object, and its data members are defined between { and }.
Example:
transfer PersonTransfer {
}The above example declares the transfer object PersonTransfer with no members.
Field
A transfer object may contain data members called fields. A field has an associated primitive domain type, in other words, the field is a typed element. Fields cannot store multiple primitive values (that is, collection), but only a single primitive value.
|
If you want to have a collection of primitives, use a wrapper transfer object with just one primitive field, and use a relation to the collection of wrappers to store a collection of primitive values. |
Use the field keyword to specify a field within a transfer object.
Syntax:
field [required] <primitive> <name> [default:<default>];
where <primitive> is the name of a domain model primitive and the <name> is the referable name of the field.
The required keyword means that the value of the field cannot be undefined at the time the object is validated. When the transfer object is validated it will report fields that are required and having the value of UNDEFINED. The timing of validation is not discussed in this document. Validation can be called at any time from Java or script execution, or it can be called by the architecture (e.g. before the execution of a service).
Optionally, a <default> value can be specified as an expression. The <default> value expression is evaluated when a new instance of the transfer object is created, and the field is set according to the default value expression. See Expression later.
Example:
transfer PersonTransfer {
field required String firstName;
field required String lastName;
field String midName;
}The example above defines a transfer object named PersonTransfer. This transfer object has three fields. firstName and lastName are two required strings, and midName is an optional string.
Relation
A relation is a reference defined between two transfer objects. The concept closely resembles the relation concept described in Relations section of entities. The transfer object instance that holds the reference is considered the owner of the relation. As the owner, it has access to the instance being referred to by the reference.
Relations can be not only references to a single instance, but also collections. If the relation is a collection, the owner can access a set of instances at the same time.
Relations between transfer objects are inherently unidirectional. A relation can only be navigated in one direction: from the owner to the target of the relation. Navigation means that, at run-time, the owner of the relation gets the instance(s) of the target of the relation.
Use the relation keyword to specify a relation between two transfer objects.
Syntax:
relation [required] <transfer>[[]] <name> [default:<default>];
where <transfer> is the name of a transfer object to which the relation is targeted. The <name> is used to identify the relation within the owner, it is commonly referred to as role name.
The optional [] behind the <transfer> indicates that the relation is a collection rather than a single reference to one <transfer> instance. In other words, the cardinality of the relation is a collection.
The required keyword means that the value of the relation cannot be undefined at the time the object is validated. When the transfer object is validated it will report relations that are required and having the value of UNDEFINED. The timing of validation is not discussed in this document. Validation can be called at any time from Java or script execution, or it can be called by the architecture (e.g. before the execution of a service).
The keyword required is not allowed for collections.
Optionally, a <default> value can be specified as an expression. The <default> value expression is evaluated when a new instance of the transfer object is created, and the relation is set according to the default value expression. See Expression later.
Example:
transfer CustomerTransfer {
relation OrderTransfer[] orders;
}
transfer OrderTransfer {
}The example above defines a relation. orders is defined within CustomerTransfer transfer object and refers to a list of OrderTransfer transfer object instances that belong to a particular customer.
Example:
transfer AddressTransfer {
field required String line1;
field String line2;
field String City;
field String ZipCode;
}
transfer PersonTransfer {
relation required AddressTransfer address;
}The second example defines the AddressTransfer transfer object with its fields, and each PersonTransfer instance must have an AddressTransfer.
Mapped transfer object
Data transformation between entities and transfer objects is a tedious and error-prone task. Mapped transfer objects are intended to facilitate this work and also carry data between our application and the outside world, but they can be linked to a specific entity instance. The link between the mapped transfer object instance and the entity instance is represented by a specific field of the mapped transfer object, called mapping field.
|
Understanding the concept of a mapping field is extremely important as you continue reading this document. The name "mapping field" comes from its role. In practice, the mapping field is a field in the mapped transfer object. This is a reference to the entity instance to which the transfer object is linked. This reference can be read at any time like any other field of the transfer object. An important consequence of the above is that the name of the mapping field cannot be used as a field name in the mapped transfer object. |
Mapping is a configuration approach that copies entity field values to transfer object fields and vice versa in a pre-defined way, see more in Mapping configuration chapter.
To define a mapped transfer object, use the transfer keyword and specify an entity type as a parameter.
Syntax:
transfer <name> (<entity> <mapping-field>) { [field] ... }
where the <name> is the name of the transfer object, and the member fields are defined between { and }. The <entity> is the entity type of the linked entity instance. The <mapping-field> is the name of the field that refers to the linked entity instance.
|
There is an alternative syntax to define a mapped transfer object. This alternative is a bit more expressive, although it may be too verbose. transfer <name> maps <entity> as <mapping-field> [{ [field] ... }] |
The example below shows a mapped transfer object.
Example:
entity Person {
field String name;
}
transfer PersonTransfer(Person person) {
field String name <= person.name;
}The transfer object PersonTransfer is mapped to the Person entity. A particular instance of the Person entity is accessible as person within the scope of the PersonTransfer transfer object. The person field is a field of type Person, which is the mapping field.
The value of the mapping field (person in the example above) can be undefined (e.g. the mapping field is not required). In some PersonTransfer instances, the mapping field may refer to a particular Person entity instance, and in others it may be undefined.
Mapping configuration
Mapping configuration is a declarative description of how the fields of a transfer object read and/or write specific fields of the entity mapped by the transfer object. Mapping configuration can only be used for mapped transfer objects.
Use the <= symbol in the field definitions to define the mapping configuration.
Mapped field
Syntax:
field [required] <primitive> <name> [<= <expression>];
where <primitive> is the name of a domain model primitive, or
field [required] <transfer>[[]] <name> [<= <expression>];
If the <= symbol is used, the value of the transfer field will be set to the value of the expression specified after <=.
Example:
entity SalesPerson {
field String firstName;
field String lastName;
}
transfer SalesPersonTransfer(SalesPerson salesperson) {
field String fullName <= salesperson.firstName + " " + salesperson.lastName;
}In the example above, transfer field value is set by concatenating the firstName and lastName fields of SalesPerson entity with a space in the middle. Note the salesperson reference in the expression which refers to the mapping field.
If the expression after the <= symbol is a direct member selection of the mapped entity, in addition to setting the value of the transfer field, it writes the value of the transfer field to the entity field when the transfer object field changes. Direct member selection is a one step navigation as it is shown in the example below.
Example:
entity SalesPerson {
field String firstName;
field String lastName;
}
transfer SalesPersonTransfer(SalesPerson salesperson) {
field String firstName <= salesperson.firstName;
field String lastName <= salesperson.lastName;
}In other words, the <= symbol creates a read-only connection between the entity and the transfer fields, where the value of the transfer field takes the value of the expression. However, if the expression is a direct member selection after the <= symbol, it defines a read-write connection.
Mapped relation
So far, expressions returned primitive values. The following example shows a relation that is mapped to one of the entity’s relations. The example defines a relation for SalesPersonTransfer. The relation leads is defined within SalesPersonTransfer and contains a list of LeadTransfer transfer objects that belong to a particular salesperson.
Example:
entity SalesPerson {
field String firstName;
field String lastName;
relation Lead[] leads;
}
entity Lead {
field Integer value;
}
transfer LeadTransfer(Lead lead) {
field Integer value <= lead.value;
}
transfer SalesPersonTransfer(SalesPerson salesperson) {
field String fullName <= salesperson.firstName + " " + salesperson.lastName;
relation LeadTransfer[] leads <= salesperson.leads;
}|
An important note, that if the transfer field’s type is a transfer object (or a collection of transfer objects) the expression after the |
Similar to transfer fields, if the expression after the <= symbol is a direct relation/composite selection of the mapped entity, in addition to setting the value of the transfer relation, it updates the entity relation when the transfer relation changes (adds or removes entity instances to the entity relation).
Fetching modifier
Only in the case of mapped transfer relations, the fetching strategy of the related transfer objects can be specified. Possible fetching strategies are the same as those seen in Entity chapter.
-
Eager fetching is a technique where related objects are fetched at the same time as the owner transfer object is retrieved from persistent storage.
-
Lazy fetching is a technique where related objects are not fetched at the same time as the owner transfer object is retrieved from persistent storage.
By default, the the fetching strategy of mapped relations is lazy.
The default lazy fetching strategy of the transfer relation can be altered by applying the eager modifier. To apply the eager fetching strategy on a transfer relation, use the eager modifier with true value.
In the example below, the TransferOrder instances referenced by the orders mapped relation will be fetched together with the TransferCustomer instance.
Example:
transfer TransferCustomer(Customer customer) {
relation TransferOrder[] orders <= customer.orders eager:true;
}Action
Actions, also known as methods or member functions, define the operations that a transfer object can perform.
The action has a body, which is the piece of code (script) that is executed when the action is invoked. Actions, in this context, encapsulate the behavior of an object. Actions can perform a wide range of tasks, from simple calculations to complex operations including creating, updating or deleting data or other real-time communications, and they can interact with the transfer object’s fields and relations.
|
Currently, the action body can only be specified in Java. |
The action may return a computed value to its caller (its return value). This value is often referred to as output. In addition to the output, an action may also return different type of errors. The definition of errors is discussed in chapter Errors.
Use the action keyword to specify an action within a transfer object.
Syntax:
action [static] [<type>|<union>|void] <name> ([<parameter>]) [throws <error1> [, <error2>] ...];
where the <name> is the name of the action. Information can be passed to actions through a parameter, which acts as variable within the action. A <parameter> is specified after the action name within parentheses and consists of the name of a transfer object and a parameter name. An action can have at most one parameter.
The optional <type> is the output type of the action. If <type> is not specified or replaced by the keyword void the action cannot return any data. The <type> can be a single transfer object or a union.
The static keyword in actions is used to create an action that belongs to the transfer object type rather than to an instance of the transfer object type. When an action is declared with the static keyword, it becomes a type-level action. Consequently, one can invoke a static action on the transfer object type directly without creating an instance. Inside a static action, you cannot access fields or call other instance actions directly, as static actions are not associated with a specific instance.
The optional throws keyword must be followed by one ore more <error> names separated by commas. The list of errors declares which errors can be thrown from the action. See more about errors in Error chapter.
Example:
transfer ThankYouTransfer {
field String message <= "Thank you for your order. Please check other products at";
}
transfer CouponTransfer {
field String code;
}
transfer CartTransfer maps Customer as customer {
// set the status of the order to OrderStatus#ORDERED
action ThankYouTransfer order(CouponTransfer coupon);
}In the above example, the CartTransfer mapped transfer object has an action called order. Its input is a CouponTransfer unmapped transfer object containing the discount coupon code, if any. The order action returns a ThankYouTransfer unmapped transfer object.
Union
A union is a type to hold different type of transfer objects. Unions can be used only as the return type of actions. A union must have at least two members, but only one member can exist at any given time.
Unions cannot be organized into a collection.
Syntax:
union <name> < <transfer1> | <transfer2> [| <transfer3> ]...>;
where the <name> is the name of the union. Between < and > is a list of transfer objects saparated by the pipe character (|).
Example:
union Employee <SalesPersonTransfer|DeveloperTransfer>;In the example above, we define the Employee union, which contains either a SalesPersonTransfer or a DeveloperTransfer transfer object. Within the body of an action that returns Employee, it can be decided whether a SalesPersonTransfer or a DeveloperTransfer object is returned.
Lifecycle
Understanding the concept and behavior of transfer objects is essential when creating, updating, saving, deleting, and working with them. The lifetime of transfer objects is the time that elapses between the creation and destruction of a particular instance. The events that occur during their lifetime are described by the lifecycle process.
Unmapped transfer object lifecycle
Unmapped transfer objects are objects used for data transfer but are not associated with any storage mechanism. Consequently, their lifecycle is straightforward, consisting of just one stage: from creation to elimination when they are no longer referenced. Here’s how the lifecycle of unmapped transfer objects works:
-
Once created, these objects are populated with data through their initialize event handler. More details on this event can be found later.
-
After their purpose has been served, and the data has been transferred, unmapped transfer objects often become immediately eligible for garbage collection. When all references to an unmapped transfer object are lost, it becomes eligible for garbage collection.
Their simple lifecycle reflects their role as transient objects used for communication between different parts of the software, with an emphasis on efficiency and minimal memory usage. Garbage collection ensures that these objects are cleaned up when they are no longer needed, contributing to effective memory resource management.
Mapped transfer object lifecycle
Mapped transfer objects are connected to the storage mechanism through entity mapping. As a result, their lifecycle is more complicated than the lifecycle of unmapped transfer objects.

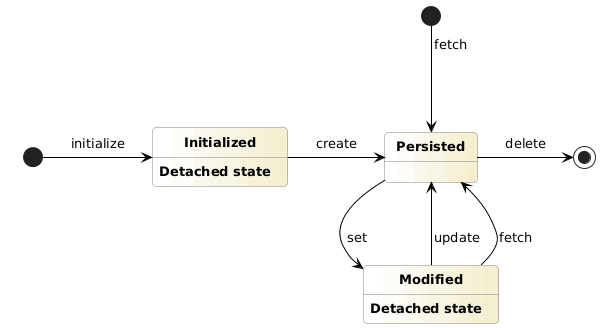

The following diagram depicts the lifecycle of mapped transfer objects.
A mapped transfer object can go through three stages during its lifecycle:
-
Initialized: This is where the object begins its lifecycle. In this state, the object’s fields have their default values. The object has not yet been persisted, so its mapping field is undefined. Since the fields of the mapped transfer object do not match the fields of the mapping entity (as it does not yet exist), we refer to this as a detached state.
-
Persisted: This state represents an object in a persisted or saved state, indicating that its fields are stored in the mapping entity. The mapped transfer object has already been persisted, so its mapping field is defined.
-
Modified: The Modified state represents an object that has been altered, but the modifications have not yet been saved to the fields of the mapping entity. The mapping entity already exists, so the mapped transfer object’s mapping field is defined. Since the fields of the mapped transfer object do not match the fields of the mapping entity, we also refer to this as a detached state.
A transition refers to a change in the object’s state that occurs as a result of a specific event. Events are shown next to transition arrows on the diagram. The following events can occur to a mapped transfer object:
-
The initialize event represents the action of initializing an object, causing it to transition to the initialized state. It sets the initial field values of the object.
-
The create event signifies the action of saving an object’s state to the storage. It transitions the object from the initialized state to the persisted state.
-
The fetch event indicates the retrieval of data from the persistent storage. It transitions the object into the persisted state where it holds the fetched data.
-
The set event represents an action where the mapped transfer object’s fields modified. This leads to a transition from the persisted state to the modified state, indicating that changes have been made but not yet saved.
-
The update event is associated with saving the modifications made to a transfer object. It causes the object to transition from the modified state back to the persisted state, reflecting that the changes have been persisted.
-
The delete event is used to indicate the removal or deletion of an object. It results in the object transitioning to an end state and its mapped entity being removed from the persistent storage entirely.
Event handlers
Event handlers are blocks of code that are designed to respond to specific events. Their primary purpose is to define how the system should react when particular events occur. The list of events that may occur can be found in the lifecycle description of transfer objects.
Event handlers can be used to customize the behavior of the application by executing code before, after, or instead of the default event handling mechanism.
-
Before-event handlers run before the default event handler and are useful for setting up conditions or performing validations.
-
After-event handlers execute after the default event handler has completed its task. They are suitable for cleanup, logging, or triggering additional actions.
-
Instead-of-event handlers replace the default event handler with custom code, allowing complete control over event processing.
The following event handlers can be defined for transfer objects.
Initialize
The primary goal of the initialize event is to set default data for a mapped transfer object. When the initialize event occurs, the default event handler sets the initial state and assigns values to the members of the transfer object as specified in their default values.
Optionally, initialize event handlers can be specified for transfer objects. The initialize event handlers are automatically called before, after and when a new transfer object is constructed and can be used to set default values of the fields.
Initialize event handlers can be defined both for unmapped and mapped transfer objects.
|
Currently, the body of the initialize event handlers can only be defined in Java. |
Syntax:
event (before|after|instead) initialize <name>[()];
In this syntax, <name> represents the identifier for the event handler.
When employing the before keyword, the initialize event handler executes prior to the actual initialization process. This handler provides an opportunity to perform specific tasks or validations before the default initialization occurs. At this stage, the object has not yet been fully initialized, allowing for adjustments or customizations to be made before the object is formally set up. This can be useful for applying business rules or performing any necessary checks. Note that the member values will be UNDEFINED during execution.
Conversely, if employing the after keyword, the handler is triggered after the object has been successfully initialized. This handler allows for additional actions to be taken once the default initialization process is complete. It’s useful for tasks such as updating related entities, triggering notifications, or performing any post-initialization operations. At this point, the object is already initialized with its initial values.
The instead handler for the initialize event provides an alternative execution path, taking precedence over the default object initialization process. When the instead keyword is utilized, the specified event handler replaces the standard mechanism for initializing objects. Within this handler, developers have the flexibility to define custom procedures for object initialization, including the option to set field and relation values of the transfer object. In this case, you should provide the default values within the handler. If there are no default value settings in the handler, members will have UNDEFINED values after initialization, even if default values are specified in the member declarations.
Example:
transfer PersonTransfer(Person person) {
field required String firstName default:"FN";
field required String lastName default:"LN";
field String midName;
event before initialize beforeInit;
event after initialize afterInit;
event instead initialize insteadInit;
}Create
The create event occurs when a mapped transfer object is persisted for the first time. The create event encompasses three distinct types of handlers: after, before, and instead. When a mapped transfer object undergoes its initial persistence, the before event handler is invoked before the mapping entity is created. This allows for the execution of specific actions or processes prior to the default creation process. Subsequently, the after event handler is triggered after the creation of the mapping entity, providing an opportunity to perform additional tasks or modifications once the default creation is complete. In contrast, the instead event handler is an alternative mechanism; when specified, it supersedes the default creation process entirely. If the instead event handler is employed, it becomes responsible for executing the necessary operations of the standard creation process.
A create event handler can only be defined for mapped transfer objects.
|
Currently, the body of the create event handler can only be defined in Java. |
Syntax:
event (before|after) initialize <name>[()];
or
event instead create <name>[(<transfer> <parameter>)];
In this syntax, <name> represents the identifier for the event handler.
When employing the before keyword, the create event handler executes prior to the actual object creation. This handler provides an opportunity to perform specific tasks or validations prior to the default creation process. At this stage, the object has not yet been persisted in the storage, allowing for adjustments or customizations to be made before the object is formally created. This can be useful for applying business rules, or performing any necessary checks.
Conversely, if employing the after keyword, the handler is triggered after the object has been successfully created and persisted. This handler allows for additional actions to be taken once the default creation process is complete. It’s useful for tasks such as updating related entities, triggering notifications, or performing any post-creation operations. At this point, the object is already stored in the persistent storage with its values.
The instead handler for the create event provides an alternative execution path, taking precedence over the default object creation process. When the instead keyword is utilized, the specified event handler replaces the standard mechanism for creating objects. Within this handler, developers have the flexibility to define custom procedures for persisting object, including the option to set field and relation values.
The instead create event handler can optionally accept a transfer object parameter. The field values of this parameter can be utilized when the transfer object is saved for the first time. This parameter enables differentiation between the creation and update parameters of the transfer object.
Example:
transfer PersonTransfer(Person person) {
field required String firstName;
field required String lastName;
field String midName;
event after create afterCreate;
event before create beforeCreate;
event instead create insteadCreate;
}Fetch
The primary purpose of the fetch event is to retrieve data from persistent storage. When the fetch event occurs, the field values of the mapping entity are copied to the fields of the mapped transfer object.
The fetch event occurs when a mapped transfer object is retrieved from persistent storage. The fetch event also encompasses three distinct types of handlers: after, before, and instead. When a mapped transfer object undergoes retrieval, the before event handler is invoked before the data is obtained. This allows for the execution of specific actions or processes prior to the default retrieval process. Subsequently, the after event handler is triggered after the data retrieval is complete, providing an opportunity to perform additional tasks or modifications once the default retrieval is finished. In contrast, the instead event handler is an alternative mechanism; when specified, it supersedes the default retrieval process entirely. If the instead event handler is employed, it becomes responsible for executing the necessary operations instead of the standard retrieval process.
A fetch event handler can only be defined for mapped transfer objects.
|
Currently, the body of the fetch event handler can only be defined in Java. |
event (before|after|instead) fetch <name>[()];
In this syntax, <name> represents the identifier for the event handler.
When employing the before keyword, the fetch event handler executes prior to the actual data retrieval. This handler provides an opportunity to perform specific tasks or validations prior to the default retrieval process. At this stage, the object has not yet been retrieved from the storage, allowing for adjustments or customizations to be made before the object is formally fetched. This can be useful for applying business rules or performing any necessary checks.
Conversely, if employing the after keyword, the handler is triggered after the object has been successfully retrieved. This handler allows for additional actions to be taken once the default retrieval process is complete. It’s useful for tasks such as updating related entities, triggering notifications, or performing any post-retrieval operations. At this point, the object is already retrieved from persistent storage with its values.
The instead handler for the fetch event provides an alternative execution path, taking precedence over the default object retrieval process. When the instead keyword is utilized, the specified event handler replaces the standard mechanism for fetching objects. Within this handler, developers have the flexibility to define custom procedures for retrieving objects, including the option to set field and relation values of the transfer object.
Example:
transfer PersonTransfer(Person person) {
field required String firstName;
field required String lastName;
field String midName;
event after fetch afterFetch;
event before fetch beforeFetch;
event instead fetch insteadFetch;
}Update
The primary objective of the update event is to modify data in persistent storage. When the update event occurs, the field values of the mapped transfer object are used to update the corresponding fields of the mapping entity.
The update event takes place when a mapped transfer object is modified and persisted to the storage. It encompasses three distinct types of handlers: after, before, and instead. When a mapped transfer object undergoes an update, the before event handler is invoked before the data is modified. This allows for the execution of specific actions or processes prior to the default update process. Subsequently, the after event handler is triggered after the data modification is complete, providing an opportunity to perform additional tasks or modifications once the default update is finished. In contrast, the instead event handler is an alternative mechanism; when specified, it supersedes the default update process entirely. If the instead event handler is employed, it becomes responsible for executing the necessary operations instead of the standard update process.
An update event handler can only be defined for mapped transfer objects.
|
Currently, the body of the update event handler can only be defined in Java. |
Syntax:
event (before|after|instead) update <name>[()];
In this syntax, <name> represents the identifier for the event handler.
When employing the before keyword, the update event handler executes prior to the actual data modification. This handler provides an opportunity to perform specific tasks or validations prior to the default update process. At this stage, the object has not yet been modified in the storage, allowing for adjustments or customizations to be made before the object is formally updated. This can be useful for applying business rules or performing any necessary checks.
Conversely, if employing the after keyword, the handler is triggered after the object has been successfully updated. This handler allows for additional actions to be taken once the default update process is complete. It’s useful for tasks such as updating related entities, triggering notifications, or performing any post-update operations. At this point, the object is already updated in persistent storage with its new values.
The instead handler for the update event provides an alternative execution path, taking precedence over the default object update process. When the instead keyword is utilized, the specified event handler replaces the standard mechanism for updating objects. Within this handler, developers have the flexibility to define custom procedures for updating objects, including the option to set field and relation values of the transfer object.
Example:
transfer PersonTransfer(Person person) {
field required String firstName;
field required String lastName;
field String midName;
event after fetch afterUpdate;
event before fetch beforeUpdate;
event instead fetch insteadUpdate;
}Delete
The primary objective of the delete event is to remove data from persistent storage. When the delete event occurs, the corresponding mapping entity is removed, and its field values are no longer present.
The delete event takes place when a mapped transfer object is marked for deletion and removed from persistent storage. It encompasses three distinct types of handlers: after, before, and instead. When a mapped transfer object undergoes deletion, the before event handler is invoked before the data is removed. This allows for the execution of specific actions or processes prior to the default deletion process. Subsequently, the after event handler is triggered after the data removal is complete, providing an opportunity to perform additional tasks or modifications once the default deletion is finished. In contrast, the instead event handler is an alternative mechanism; when specified, it supersedes the default deletion process entirely. If the instead event handler is employed, it becomes responsible for executing the necessary operations instead of the standard deletion process.
A delete event handler can only be defined for mapped transfer objects.
|
Currently, the body of the delete event handler can only be defined in Java. |
Syntax:
event (before|after|instead) delete <name>[()];
In this syntax, <name> represents the identifier for the event handler.
When employing the before keyword, the delete event handler executes prior to the actual data removal. This handler provides an opportunity to perform specific tasks or validations prior to the default deletion process. At this stage, the object has not yet been removed from the storage, allowing for adjustments or customizations to be made before the object is formally deleted. This can be useful for applying business rules or performing any necessary checks.
Conversely, if employing the after keyword, the handler is triggered after the object has been successfully deleted. This handler allows for additional actions to be taken once the default deletion process is complete. It’s useful for tasks such as updating related entities, triggering notifications, or performing any post-deletion operations. At this point, the object is already removed from persistent storage.
The instead handler for the delete event provides an alternative execution path, taking precedence over the default object deletion process. When the instead keyword is utilized, the specified event handler replaces the standard mechanism for deleting objects. Within this handler, developers have the flexibility to define custom procedures for deleting objects.
Example:
transfer PersonTransfer(Person person) {
field required String firstName;
field required String lastName;
field String midName;
event after delete afterDelete;
event before delete beforeDelete;
event instead delete insteadDelete;
}
